Dometic RM3962RB Refrigerator / Freezer 2-way - 9 Cu. Ft.
This large sized refrigerator is common in motorhomes, toy haulers,
fifth-wheels, and other large trailers. It has a large food storage
compartment, and a convenient second door for the frozen food
compartment. Offering a stylish residential appearance, an eye-level LED
temperature display, and a flush mounted interior light.
LP / 110V:
Hook up to the gas supply line is accomplished at the manual gas valve,
which is furnished with a 3/8" SAE male flare connection. The
refrigerator is equipped with a three-prong (grounded) plug for
protection against shock hazards and should be plugged directly into a
properly grounded three-prong receptacle. The free length of the cord is
2 feet. This refrigerator does not operate on 12 Volt DC, however it
does require a 12 Volt connection to operate the controls.
Replaces:
Some of these replacements are the best matches but are not exact
replacements, please review your current dimensions with this
refrigerators dimensions. Old Dometic Refers: S820, 830, S1821,
1831, S819, RM75, 76, 77, RM2800, RM2801, RM2810, RM4872, RM4873,
RM4801, RM4804, RM3862, 3863, NDM1062 Norcold Refers: N841, N841.3, 8682, 8310, 878, 482, 483, 682, 683, 841, 8010 Instamatic Refers: RV-8-801 Sibir Refers: RV-110, RV-280
Product Information
Overall Dimensions
63-15/16"H x 25-5/16"W x 26-1/16"D
Recess
62-61/64"H x 23-11/16"W x 24"D
This kit includes
1x RM3962RB New Generation Refrigerator

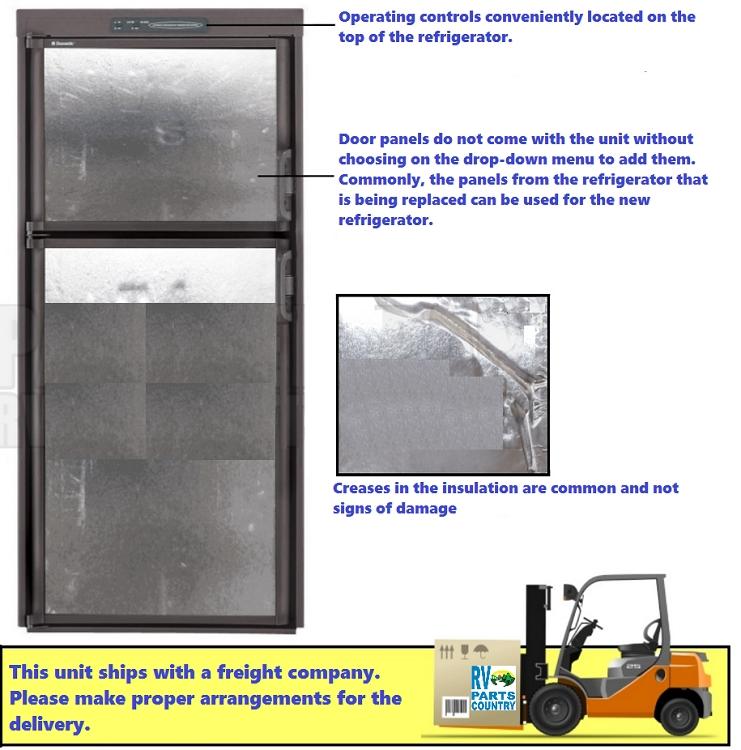

Note: If this is a new installation, you
will need to order a door panel, otherwise you should be able to use the
door panel from your old refrigerator. Keep in mind, if you don€™t
install a door panel, the foil insulation will be showing on the face of
the door.
Forget the old 6 and 8 cu. ft. models - step up to these revolutionary 7 and 9 cu. ft. units.
The 9 cu. ft. fits the same floor dimensions and is only 3" taller than
the 8 cu. ft. models. User-friendly units feature residential style
handles, convenient eye-level controls and versatile racking systems.
Shelf Guards prevent spills. Transparent door shelves and crispers
display contents at a glance. Automatic climate control.
Features:
- Solid steel front frame adds durability and ensures a tight door seal
- Self-locking door handles, designed for easy operation and security
- Eye-level LED controls display fresh food temperatures for easy monitoring

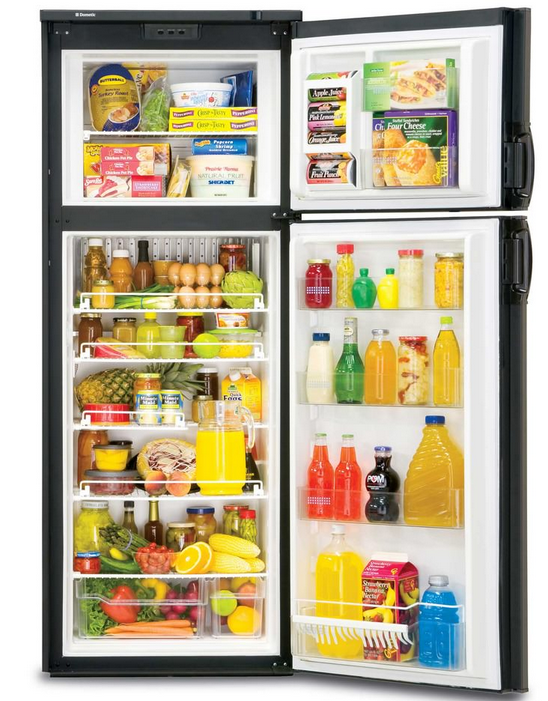

- Four interior fresh food shelves provide flexible storage options for any size family
- Self-Adjusting Magic Fingers
- 5 interior fresh food shelves
- Flush mounted interior lights
- 2-way operation, 110V AC/LP Gas Other Exterior Features:
- Available in Platinum Stainless Steel or Black Stainless Steel Door Panels
- Offset Door Configuration
- Residential Style Handles
- Positive Lock System
- Automatic Front Frame Heater Other Interior Features:
- Optional Automatic Ice Maker
- Easy-Clean White Interior
- Designer White Coated Shelves
- Sliding Freezer Bins
- Dual Shelf Guards & Slide-Out Shelf
- 2 Crispers
- 180-degree Door Swing
