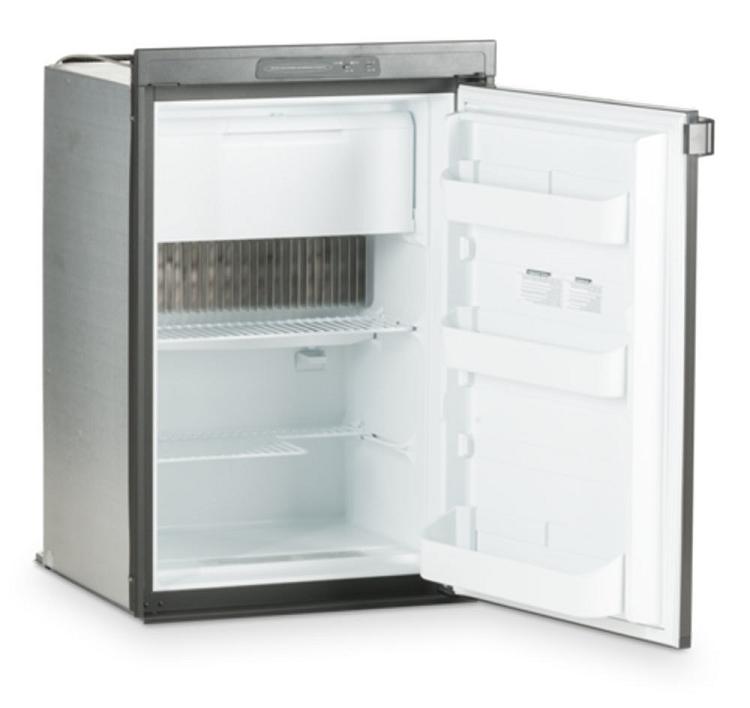

Dometic RM2454RB Refrigerator / Freezer 3-way - 4 Cu. Ft.
This medium sized refrigerator is common in medium sized trailers, truck
campers, and sometimes conversion vans. It has a decent sized food
storage compartment, and a convenient section for the frozen food.
Equipped with electronic controls with an automatic electronic LP
ignition system. An automatic temperature control system helps maintain a
consistent temperature.
LP / 110V / 12V:
Hook up to the gas supply line is accomplished at the manual gas valve,
which is furnished with a 3/8" SAE male flare connection. The
refrigerator is equipped with a three-prong (grounded) plug for
protection against shock hazards and should be plugged directly into a
properly grounded three-prong receptacle. The free length of the cord is
2 feet. This refrigerator model requires a continuous 12 volt DC supply
to maintain the automatic energy system. The connection is made to the
positive and negative terminals of the terminal block on back of the
refrigerator.
Replaces:
Some of these replacements are the best matches but are not exact
replacements, please review your current dimensions with this
refrigerators dimensions. Old Dometic Refers: RM2452, RM2453
Product Information
Overall Dimensions
37-3/8"H x 24-11/16"W x 24-7/8"D
Recess
36-9/16"H x 23-11/16"W x 24"D
Freezer Interior Dimensions
16€ x 5€
This kit includes
1x RM2454RB Dometic Americana Refrigerator

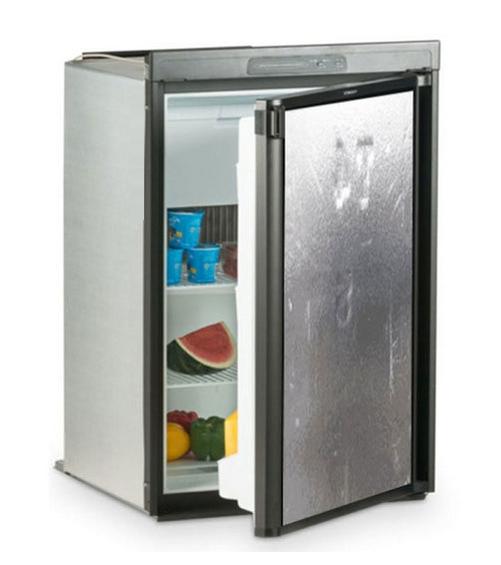

Note: If this is a new installation, you
will need to order a door panel, otherwise you should be able to use the
door panel from your old refrigerator. Keep in mind, if you don€™t
install a door panel, the foil insulation will be showing on the face of
the door.
