Dometic RM2354RB RV Refrigerator / Freezer - (LP/120V/12V) - 3 Cu. Ft.

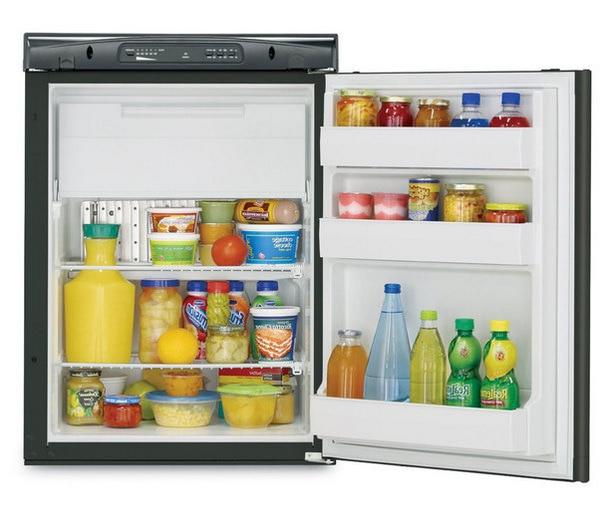

This small Dometic refrigerator is common in small trailers, slide-in
truck campers, and various pop-ups. It has a large food storage
compartment that is completely closed and unventilated, which is
necessary to maintain the required low temperature for food storage. A
frozen food storage compartment is included with the 3.0 Cubic Foot
Refrigerator.
Gas Connection
Hook up to the gas supply line is accomplished at the manual gas valve,
which is furnished with a 3/8" SAE male flare connection. All completed
connections should be checked for leaks with soapy water.
120 Volts AC Connection
The refrigerator is equipped with a three-prong (grounded) plug for
protection against shock hazards and should be plugged directly into a
properly grounded three-prong receptacle. The free length of the cord is
2 feet, and therefore recommended that the receptacle be located to the
left side of the refrigerator (viewed from the rear) and approximately
4-6 inches from the floor.
12 Volts DC Connection
This refrigerator model requires a continuous 12 volt DC supply to
maintain the automatic energy system. The connection is made to the
positive and negative terminals of the terminal block on back of the
refrigerator.
Product Information
Overall Dimensions
30-5/32 H x 21-7/8 W x 22-23/32 D"
Recess
29-3/4 H x 20-1/2 W x 21-3/8 D
Freezer Interior Dimensions
16€ x 5€
Replaces
Some of these replacements are the best matches but are not exact
replacements, please review your current dimensions with this
refrigerators dimensions. Old Dometic Refers: RM360, RM361, RM2300, RM2301, RM2310, RM2332, RM2333 Norcold Refers: N300, N300.3 Instamatic Refers: RV-3-301, IM-3 Sibir Refers: RV-104 GE: TG-3, TG-4
This kit includes
1x RM2354RB Dometic Americana Refrigerator

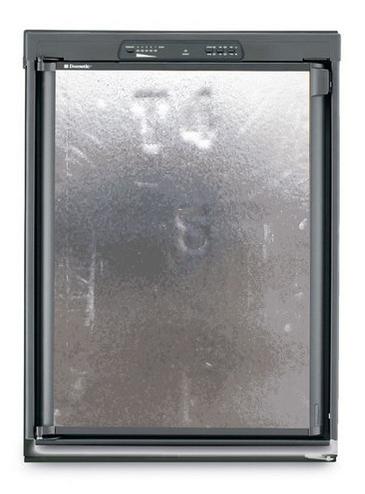

Note: If this is a new installation, you will
need to order a door panel, otherwise you should be able to use the door
panel from your old refrigerator. Keep in mind, if you don't install a
door panel, the foil insulation will be showing on the face of the door.
