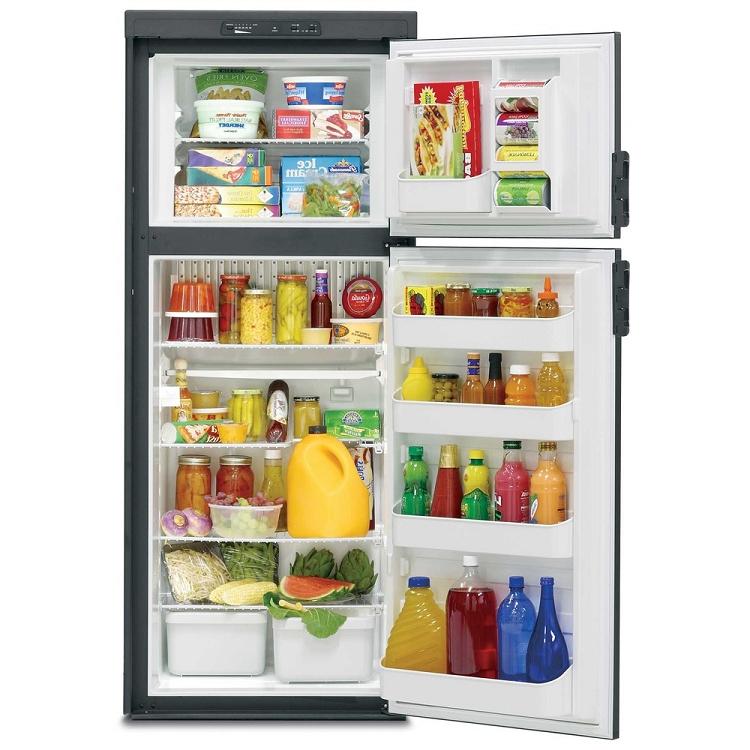

Dometic DM2862RB Refrigerator / Freezer 2-way - 8 Cu. Ft.
This large sized refrigerator is common in motorhomes, toy haulers,
fifth-wheels, and other large trailers. It has a large food storage
compartment, and a convenient second door for the frozen food
compartment. Equipped with eye-level electronic controls with an
automatic electronic LP ignition system. This refrigerator includes an
adjustable thermostat, giving the user control of the refrigerators
temperature.
LP / 110V:
Hook up to the gas supply line is accomplished at the manual gas valve,
which is furnished with a 3/8" SAE male flare connection. The
refrigerator is equipped with a three-prong (grounded) plug for
protection against shock hazards and should be plugged directly into a
properly grounded three-prong receptacle. The free length of the cord is
2 feet. This refrigerator does not operate on 12 Volt DC, however it
does require a 12 Volt connection to operate the controls.
Replaces:
Some of these replacements are the best matches but are not exact
replacements, please review your current dimensions with this
refrigerators dimensions. Old Dometic Refers: S820, 830, S1821,
1831, S819, RM75, 76, 77, RM100, 2802, 2803, RM2804, 2807, 2811, 2812,
2820, RM3800, 3801, 3804, 3807, RM2800, RM2801, RM2810, RM4872, RM4873,
RM4801, RM4804, RM3862, 3863 Norcold Refers: N841, N841.3, 8682, 8310, 878, 482, 483, 682, 683, 841, 8010 Instamatic Refers: RV-8-801 Sibir Refers: RV-110, RV-280
Product Information:
Overall Dimensions
60-51/64"H x 24-7/8"W x 26-1/32"D
Recess
59-15/16"H x 23-11/16"W x 24"D
This kit includes
1x DM2862RB Dometic Americana Refrigerator

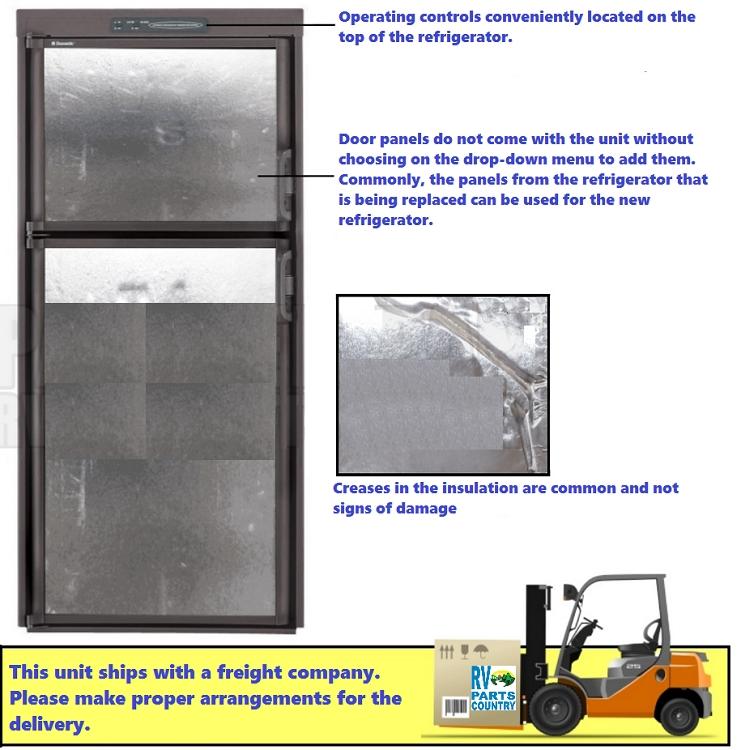

Note: If this is a new installation, you
will need to order a door panel, otherwise you should be able to use the
door panel from your old refrigerator. Keep in mind, if you don€™t
install a door panel, the foil insulation will be showing on the face of
the door.
