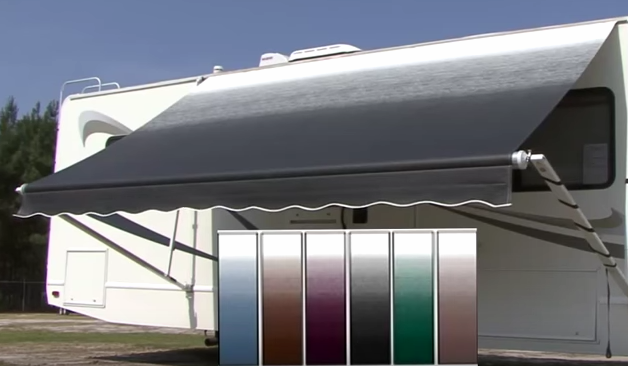

Dometic A&E 8500 16' RV Awning with Vinyl WeathershieldIts
heavy-duty, polyester-reinforced vinyl fabric has a rich, vibrant color
pattern on both sides that accents its color-matched weathershield.
Available in straight or curved hardware to fit virtually any vehicle (sold separately).
Clear acrylic coating resists scratching, fading, mildew and staining UV protected and waterproof fabric
Awning automatic roll-up
Roller tube: roll extruded alloy
Fabric: 13 oz. 4-ply polyester reinforced vinyl construction
Weathershield: polar white or color-coordinated vinyl at top of fabric
Extension: approx. 8'
Torsion Springs Factory Pre-Set Ready For Install
One piece fabric construction with valance
Includes:
1 Piece Awning Fabric
Roller Tube Assembly
Inner Spring Torsion
End Caps
Vinyl Weathersheild
Not included:
Hardware Brackets
Awning Arms
Awning Track
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
/* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:""; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-para-margin-top:0in; mso-para-margin-right:0in; mso-para-margin-bottom:10.0pt; mso-para-margin-left:0in; line-height:115%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri","sans-serif"; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin;}

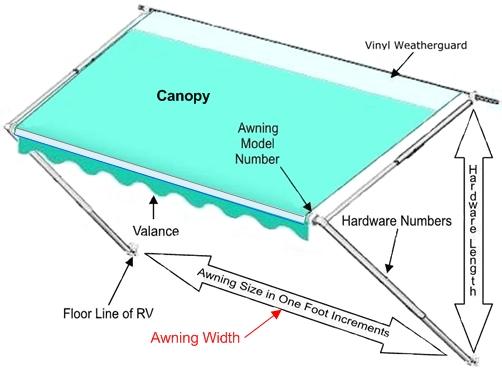

Measuring Instructions:

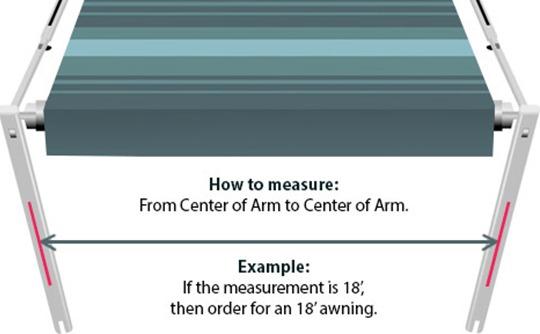

Consider what openings your new awning may block. To measure the awning length, measure from top left
bracket to top right bracket, center to center. Size awning to the nearest
foot. To measure the awning height, measure from awning rail
to interior floor line.
A&E
8500 Awning have a rugged construction, beautiful fabrics, ease of
operation and affordability combine to make the 8500 Plus the best
manual awning in the world. The Universal Plus hardware, the industry's
best, gives this awning all you need to enjoy the great outdoors
Automatic rain shed feature allows convenient, hassle-free operation
Easy set-up with patented PermaLoop pull strap Self-locking lift handles
ensure easy operation Anti-slack rafter pivot eliminates the need for
re-tensioning
