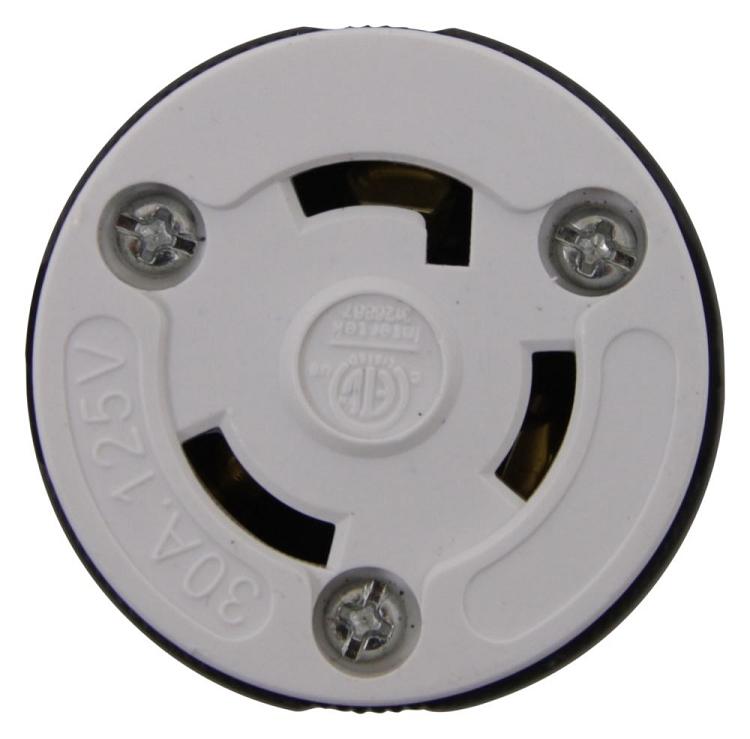

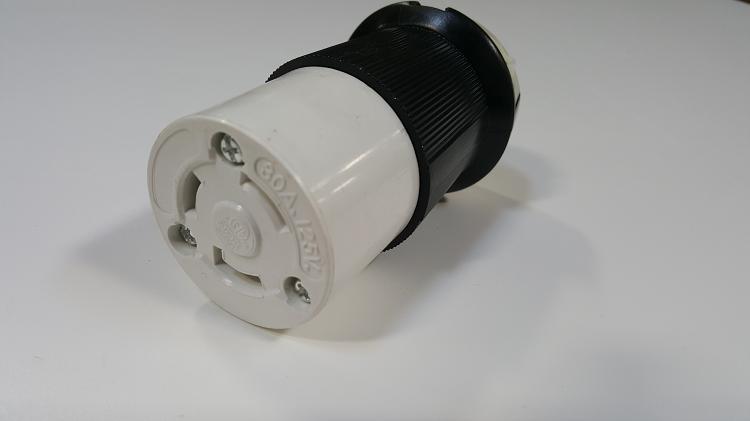

30 Amp RV Replacement Twist Lock Female ConnectorFemale twist-lock connector allows you to
construct a new RV power cord or replace the connector on an old one.
Features:
Female twist-lock connector can be used to build a new cord or to replace a connector on an old one
Cover
with locking ring (A10-30CV - sold separately) can be used to create a
weatherproof connection with the threaded ring on your RV's power inlet
Amperage: 30 amps
1-Year warranty
Rugged and durableNEMA L14-20C configuration for use with reliance PB20 power inlet box5 year limited warrantyUL listed
Item Weight: 1 pounds
Product Dimensions: 14.7 x 6.5 x 3.1 inches
Item model number: RV30AFDC
Manufacturer Part Number: RV30AFDC
30A PLUG AND CONNECTOR WIRING INSTRUCTIONSWARNING: To prevent electrocution, make sure the cable is not connected to a power source before installing the plug or connector.Failure to comply with the following instructions could cause an electrical failure or fire.1. Check to see that the rating on the plug or connector is correct for the installation.2. Select a cable of suitable capacity, service and temperature rating. The plug andconnectors are designed for use with round jacketed cable with diameters from .465" (12/4SJ) through 1.150" (8/5 S).3. Choose the correct end of the cable for the plug or connector so that the conductor colorcoding corresponds to the terminal location.4-WIRE CABLE END FOR PLUGS 4-WIRE CABLE END FOR CONNECTORS4. Slide the housing over the cable. Some 8 gauge cable is too large to fit through thehousing. If so, first knock out the removable strain relief insert from the inside of thehousing, then slide the housing over the 8 gauge cable.Inside view of the housing with arrowpointing to the removable insert.5. Strip the end cable as shown below. Make certain the wire is clean and a bright coppercolor. DO NOT SOLDER THE ENDS OF THE WIRES.6. Insert all the conductors into the proper wire terminals.Connect the GREEN wire (or green with yellow stripe) to the terminal with the green coloredscrew and the wire entrance hole marked by the letter "G".Connect the WHITE wire to the terminal with the silver colored screw and wire entrance holemarked by the letter "W".Connect the remaining wires to the terminals that are marked "X" or "Y".7. Tighten the terminal screws to 14-20 in.-lbs. torque. MAKE CERTAIN THERE IS NO WIRE INSULATION UNDER ANY TERMINAL CLAMP.8. After tightening all the terminals, make sure the jacket of the cable is within one inch of theback of the plug or connector body. This will assure that the strain relief properly grips thecable jacket.9. Slide the housing over the plug or connector body and tighten the assembly screws.NOTE: A KEY WAY IN THE HOUSING AND BODY PROPERLY ALIGNS THE TWOPARTS.10. Alternately tighten down the two strain relief screws at the rear of the housing.
